Call JavaScript Function

Overview

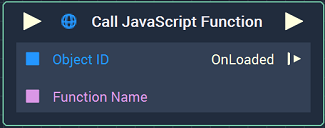

The Call JavaScript Function Node.
The Call JavaScript Function Node executes a JavaScript function that is defined in a Web Sprite Object, which has to be given to the Node as its Object Attribute.
​Scope: Scene.
Attributes

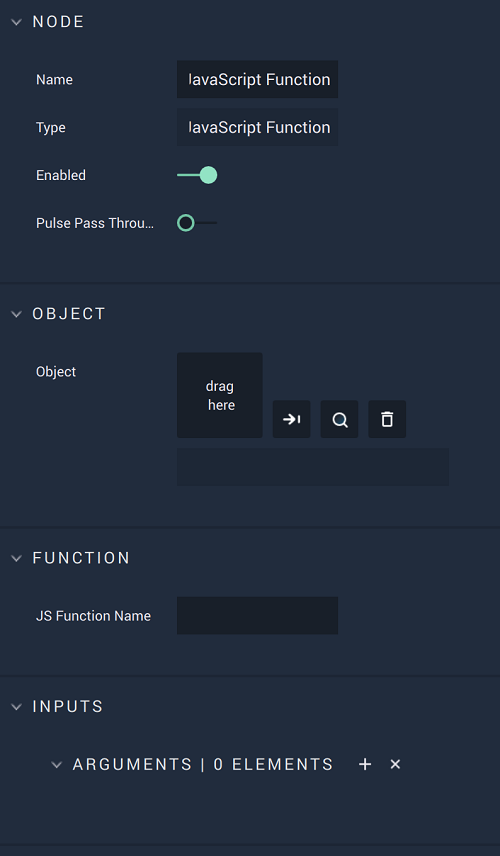

The Call JavaScript Function Node Attributes.
Object
Attribute
Type
Description
Object
ObjectID
Web Sprite Object that contains the definition of the function to be executed, if none is given in the Input Socket.
Function
Attribute
Type
Description
JS Function Name
String
Name of the function to be executed, if none is given in the Function name Input Socket.
Inputs
Attribute
Type
Description
Parameters [n]
Drop-down
Label, Data Type, and default value of the parameters given to the function.
Inputs
Input
Type
Description
Pulse Input (►)
Pulse
A standard Input Pulse, to trigger the execution of the Node.
Object ID
ObjectID
Web Sprite Object that contains the definition of the function to be executed.
Function name
String
Name of the function to be executed.
Parameter [n]
Defined in the Data Type of the Parameters Attribute
Value of the corresponding parameter.
Outputs
Output
Type
Description
Pulse Output (►)
Pulse
A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
OnLoaded
Pulse
Flows to additional actions when the Web Sprite Object has finished loading.
See Also
​On Javascript Callback​

Attribute	Type	Description
`Object`	ObjectID	Web Sprite Object that contains the definition of the function to be executed, if none is given in the Input Socket.

Attribute	Type	Description
`JS Function Name`	String	Name of the function to be executed, if none is given in the `Function name` Input Socket.

Attribute	Type	Description
`Parameters [n]`	Drop-down	Label, Data Type, and default value of the parameters given to the function.

Input	Type	Description
Pulse Input (►)	Pulse	A standard Input Pulse, to trigger the execution of the Node.
`Object ID`	ObjectID	Web Sprite Object that contains the definition of the function to be executed.
`Function name`	String	Name of the function to be executed.
`Parameter [n]`	Defined in the *Data Type* of the `Parameters` *Attribute*	Value of the corresponding parameter.

Output	Type	Description
Pulse Output (►)	Pulse	A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
`OnLoaded`	Pulse	Flows to additional actions when the Web Sprite Object has finished loading.
