On Serial Error

Overview

The On Serial Error Node is an Event Listener Node that executes when an Error is received and returns the Error Message.

Serial Communication in Incari is available as a plugin and is enabled as default. However, in the case that it is disabled in the Plugins Editor, it will not appear in the Project Settings and On Serial Error will not show up in the Toolbox. Please refer to the Plugins Editor to find out more information.

Scope: Project, Scene.

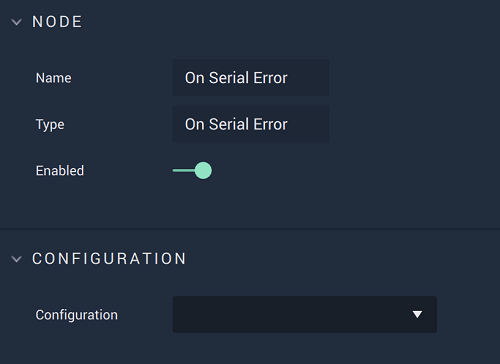

Attributes

AttributeTypeDescription

Configuration

Drop-down

The desired Serial connection.

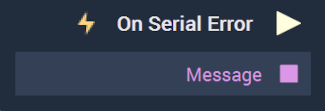

Outputs

OutputTypeDescription

Pulse Output (►)

Pulse

A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.

Message

String

The returned Error Message.

See Also
