Assert

Overview

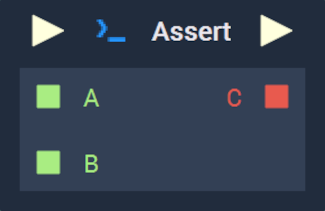

The Assert Node.
The Assert Node compares two values and outputs the result of the comparison as a Boolean. The Data Type of the values to be compared can be chosen on the Attributes.

Attributes

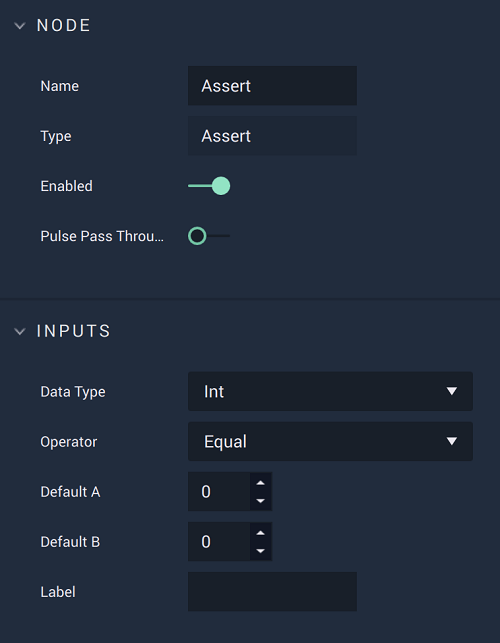

The Assert Node Attributes.

Inputs

Attribute
Type
Description
Data Type
Drop-down
The Data Type of the two values that will be compared.
Operator
Drop-down
The operation that will be used to compare the values.
Default A
Defined in the Data Type Attribute
The default value of A, if none is given in the Input Socket.
Default B
Defined in the Data Type Attribute
The default value of B, if none is given in the Input Socket.
Label
String
Message that will be printed on the Console along with the comparison result.

Inputs

Input
Type
Description
Pulse Input (►)
Pulse
A standard Input Pulse, to trigger the execution of the Node.
A
Defined in the Data Type Attribute
First value to compare.
B
Defined in the Data Type Attribute
Second value to compare.

Outputs

Output
Type
Description
Pulse Output (►)
Pulse
A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
C
Bool
Result of the comparison.
