CharCodeAt

Overview

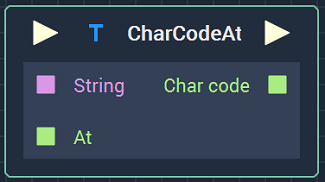

The CharCodeAt Node.
The CharCodeAt Node outputs the ASCII code of a character at a given index in a String. It takes as inputs a String and the index of the character whose code is to be obtained, and it ouputs the ASCII code of said character.
The characters indices in the String start from zero.
If the index given is greater than the String length, the output is -1.

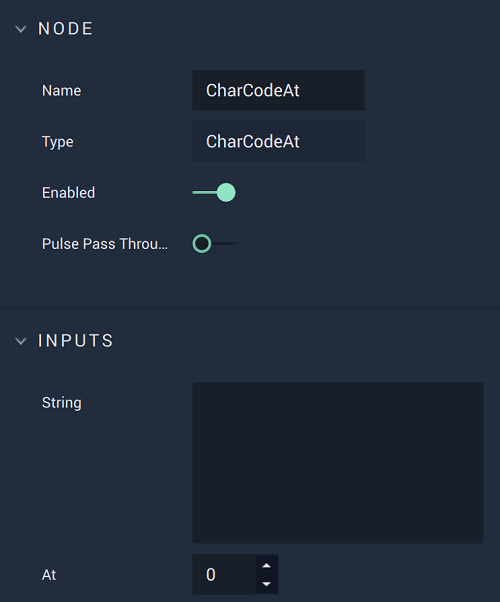

Attributes

Attribute
Type
Description
String
String
The String from which the characters codes are to be obtained, if none is given in the Input Socket.
At
Int
The index of the character whose ASCII code is to be obtained, if none is given in the Input Socket.

Inputs

Input
Type
Description
Pulse Input (►)
Pulse
A standard Input Pulse, to trigger the execution of the Node.
String
String
The String from which the characters codes are to be obtained.
At
Int
The index of the character whose ASCII code is to be obtained.

Outputs

Output
Type
Description
Pulse Output (►)
Pulse
A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
Char code
Int
The ASCII code of the character at position At in String.
