Split

Overview

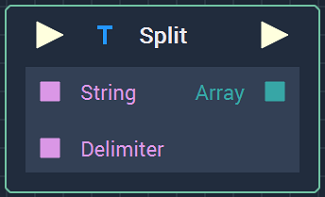

The Split Node.

The Split Node separates a String into two or more Strings. It receives as inputs the String to separate and a delimiter String, which marks where the separations will be made. Thus, if the String to split is abcdecba and the delimiter is c, the resulting Strings will be ab, de, and ba.

The resulting Strings are outputted in an Array.

In the case that the delimiter is not contained in the String to separate, the output is an Array containing just the original String.

Scope: Project, Scene, Function, Prefab.

Attributes

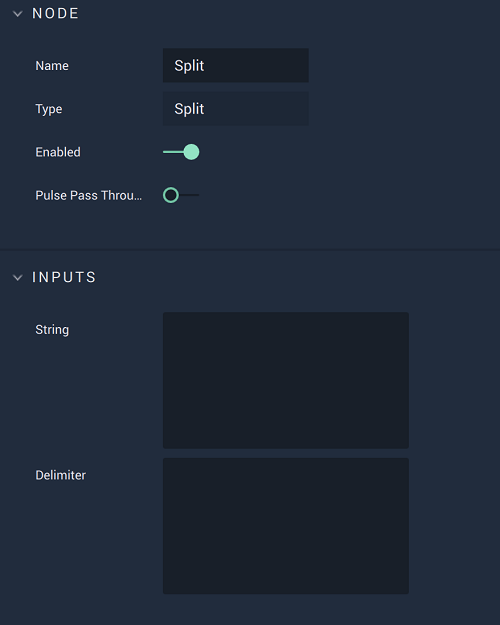

The Split Node Attributes.

Inputs

Attribute	Type	Description
String	String	String to be separated, if none is given in the Input Socket.
Delimiter	String	String that marks where to split String, if none is given in the Input Socket.

Inputs

Input	Type	Description
Pulse Input (►)	Pulse	A standard Input Pulse, to trigger the execution of the Node.
String	String	String to be separated.
Delimiter	String	String that marks where to split String.

Outputs

Output	Type	Description
Pulse Output (►)	Pulse	A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
Array	Array	Array containing the Strings that resulted from the split.

See Also

• Concat Strings
