ReplaceRegex
Overview

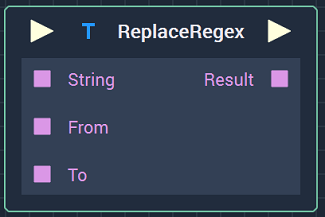

The ReplaceRegex Node.
The
ReplaceRegex
Node
allows to replace parts of a
String
using regular expressions to search for the pattern to replace.

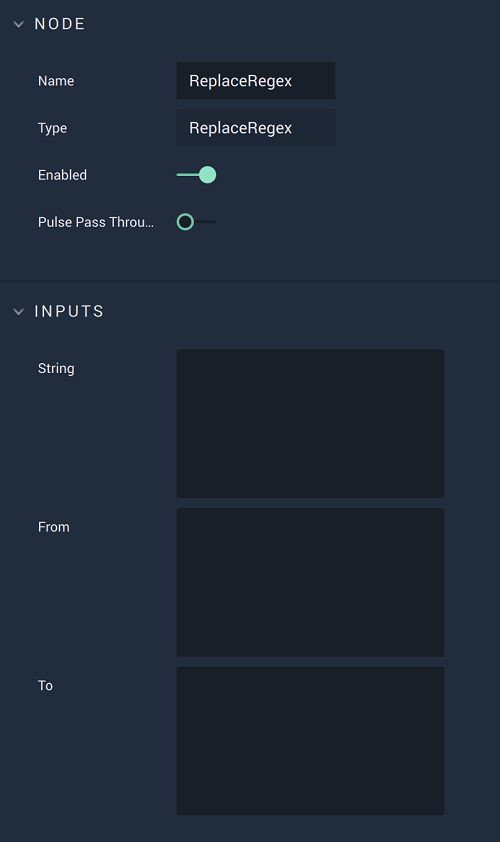

Attributes
Inputs
Attribute
Type
Description
String
String
String
in which some parts will be replaced, if none is given in the
Input Socket
.
From
String
The pattern that will be searched for and replaced using regular expressions, if none is given in the
Input Socket
.
To
String
String
that will replace the pattern defined in
From
, if none is given in the
Input Socket
.
Inputs
Input
Type
Description
Pulse Input
(â–º)
Pulse
A standard
Input Pulse
, to trigger the execution of the
Node
.
String
String
String
in which some parts will be replaced.
From
String
The pattern that will be searched for and replaced using regular expressions.
To
String
String
that will replace the pattern defined in
From
.
Outputs
Output
Type
Description
Pulse Output
(â–º)
Pulse
A standard
Output Pulse
, to move onto the next
Node
along the
Logic Branch
, once this
Node
has finished its execution.
Result
String
The resulting
String
after the pattern has been replaced.
See Also
​
Replace
​
​
MatchRegex
​
External Links
​
Regular expression
on Wikipedia.
