Concat Strings

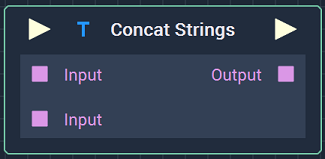

The Concat Strings Node.
Concat Strings joins two or more Strings into one new String.

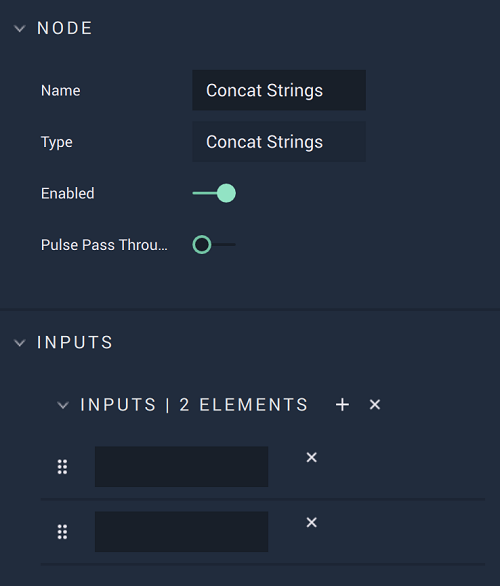

The Concat Strings Node Attributes.
Attribute | Type | Description |
---|---|---|
Inputs | User Input | The Strings to be concatenated. The user can add more elements with the + or delete an element with the x . |
Input | Type | Description |
---|---|---|
Pulse Input (►) | Pulse | A standard Input Pulse, to trigger the execution of the Node. |
Input [n] | String | The Strings to be concatenated. The number of Inputs matches the number of elements in the Attributes. |
Output | Type | Description |
---|---|---|
Pulse Output (►) | Pulse | A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution. |
Output | String | The concatenated String. |
