Overview

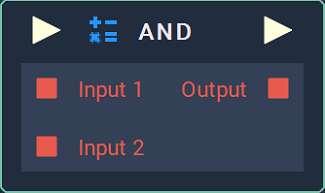

The And Node.
AND is a logical operator Node, which combines two or more Boolean expressions to yield a Boolean value, based on the inputs' logical relationship to one another. The Node outputs a true value if all of its inputs are also true. This is the equivalent of the && operator in computer programming.
Input 1
Input 2
Output
True
True
True
True
False
False
False
True
False
False
False
False
Attributes

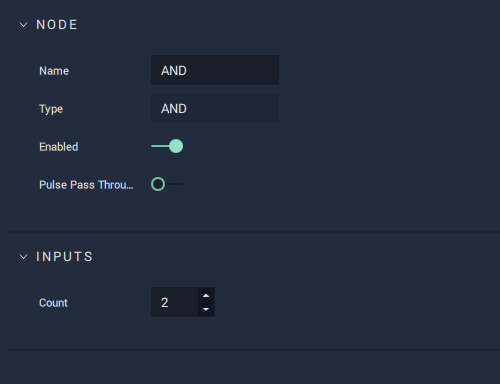

The And Node Attributes.
Attribute
Type
Description
Count
Int
The amount of input Sockets the Node will have (the number of Boolean values that will be checked).
Inputs
Input
Type
Description
Pulse Input (►)
Pulse
A standard input Pulse, to trigger the execution of the Node.
Input [n]
Bool
The Boolean values to be checked.
Outputs
Output
Type
Description
Pulse Output (►)
Pulse
A standard output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
Output
Bool
True if all of the input Boolean values are also true. Otherwise false.
See Also
​Boolean​
​Flow Control​
External Links
​Logical operation on Computer Hope.

Boolean

Bool Value
