Replace

Overview

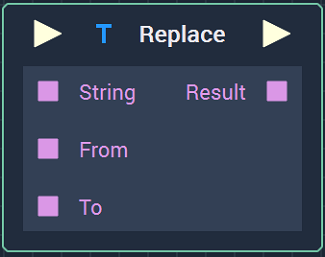

The Replace Node.
The Replace Node replaces a substring of a String with another given String. It receives three inputs:
  • String: The String whose substring will be replaced.
  • From: The substring of String that will be replaced.
  • To: The String with which From will be replaced.
For example, if the inputs are: String=ababab, From=a, and To=C; the output will be Result=CbCbCb.

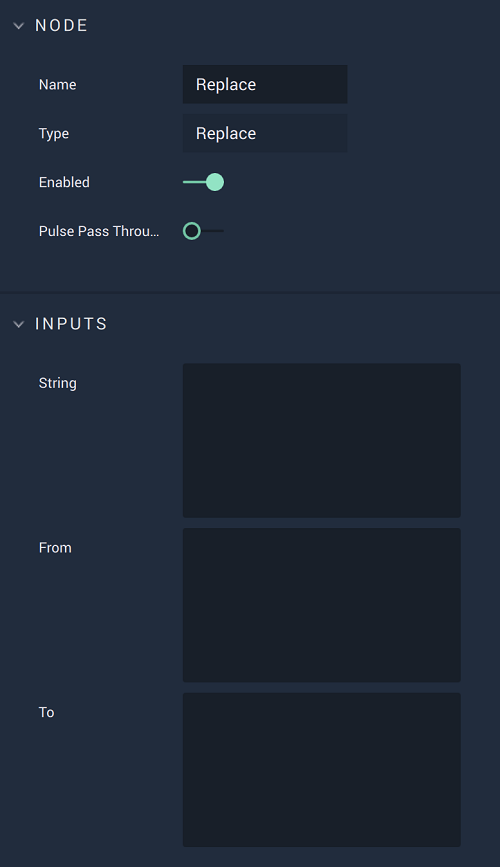

Attributes

Inputs

Attribute
Type
Description
String
String
String whose substring will be replaced, if none is given in the Input Socket.
From
String
Substring of String that will be replaced, if none is given in the Input Socket.
To
String
String with which From will be replaced, if none is given in the Input Socket.

Inputs

Input
Type
Description
Pulse Input (►)
Pulse
A standard Input Pulse, to trigger the execution of the Node.
String
String
String whose substring will be replaced.
From
String
Substring of String that will be replaced.
To
String
String with which From will be replaced.

Outputs

Output
Type
Description
Pulse Output (►)
Pulse
A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
Result
String
The resulting String after the replacement.
