CryptoHash

Overview

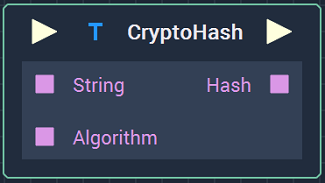

The CryptoHash Node.
The CryptoHash Node takes a String and encrypts it as a hash using an algorithm chosen by the user.
​Scope: Project, Scene, Function, Prefab.
Attributes

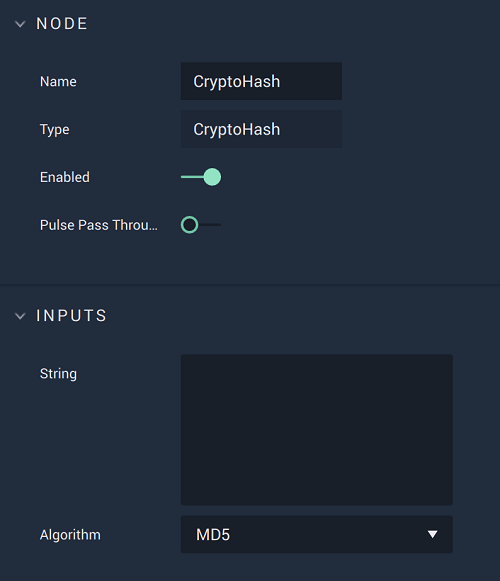

The CryptoHash Node Attributes.
Attribute
Type
Description
String
String
The String that will be encrypted, if none is given in the Input Socket.
Algorithm
Drop-down
The algorithm that will be used for the encryption, if none is given in the Input Socket. The available options are MD5, SHA-1, and SHA-256.
Inputs
Input
Type
Description
Pulse Input (►)
Pulse
A standard Input Pulse, to trigger the execution of the Node.
String
String
The String that will be encrypted.
Algorithm
String
The algorithm that will be used for the encryption. It should be one of the available options: MD5, SHA-1, or SHA-256.
Outputs
Output
Type
Description
Pulse Output (►)
Pulse
A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
Hash
String
The hash value corresponding to the String given as input.
External Links
​Cryptographic hash function on Wikipedia.
​MD5 on Wikipedia.
​SHA-1 on Wikipedia.
​SHA-2 on Wikipedia.

Attribute	Type	Description
`String`	String	The String that will be encrypted, if none is given in the Input Socket.
`Algorithm`	Drop-down	The algorithm that will be used for the encryption, if none is given in the Input Socket. The available options are `MD5`, `SHA-1`, and `SHA-256`.

Input	Type	Description
Pulse Input (►)	Pulse	A standard Input Pulse, to trigger the execution of the Node.
`String`	String	The String that will be encrypted.
`Algorithm`	String	The algorithm that will be used for the encryption. It should be one of the available options: `MD5`, `SHA-1`, or `SHA-256`.

Output	Type	Description
Pulse Output (►)	Pulse	A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
`Hash`	String	The hash value corresponding to the String given as input.
