Multiply

Overview

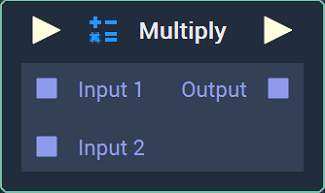

The Multiply Node.
Multiply is a basic arithmetic operation Node that outputs the product of all the values provided in the Input Sockets.
This is the equivalent of the multiplication (* or x) operation in computer science and mathematics.
Scope: Project, Scene, Function, Prefab.

Attributes

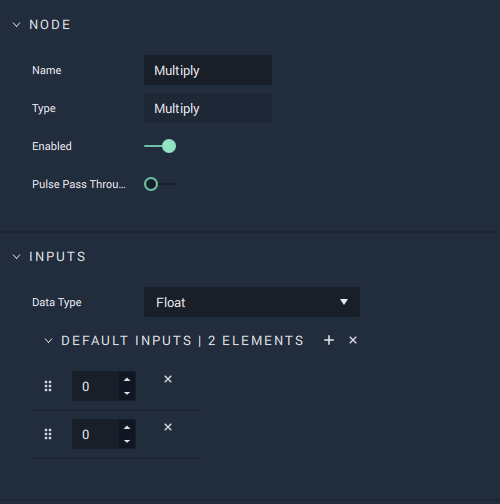

The Multiply Node Attributes.
Attribute
Type
Description
Data Type
Drop-down
The type of data that will be plugged into the Input Sockets.
Default Inputs
Defined in the Data Type Attribute.
The amount of Input Sockets and their default values if they have no data connected to them.

Inputs

Input
Type
Description
Pulse Input (►)
Pulse
A standard input Pulse, to trigger the execution of the Node.
Input [n]
Defined in the Data Type Attribute.
The values to be multiplied together.

Outputs

Output
Type
Description
Pulse Output (►)
Pulse
A standard output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
Output
Defined in the Data Type Attribute.
The product of all the values provided in the Input Sockets.
