Compare
Overview

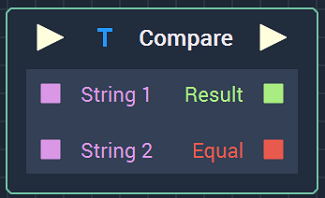

The Compare Node.
The
Compare
Node
compares two
Strings
and outputs the result indicating whether they are equal or not in two forms: an
Int
and a
Bool
.

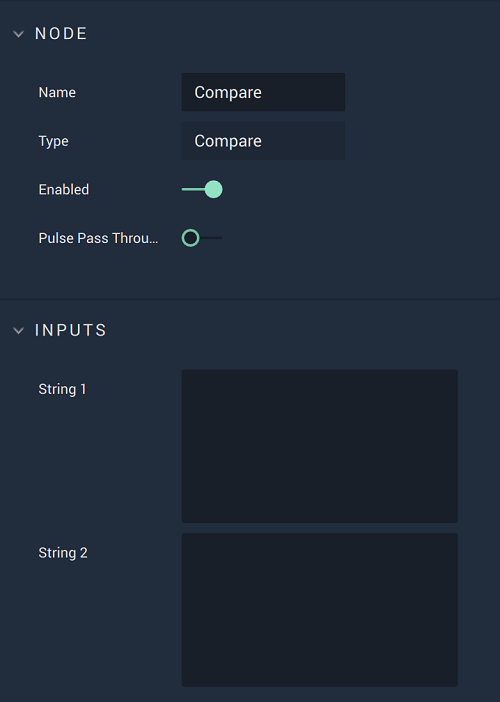

Attributes
Inputs
Attribute
Type
Description
String 1
String
The default value of the first
String
to be compared, if none is given in the
String 1
Socket
.
String 2
String
The default value of the second
String
to be compared, if none is given in the
String 2
Socket
.
Inputs
Input
Type
Description
Pulse Input
(â–º)
Pulse
A standard
Input Pulse
, to trigger the execution of the
Node
.
String 1
String
The first
String
to be compared.
String 2
String
The second
String
to be compared.
Outputs
Output
Type
Description
Pulse Output
(â–º)
Pulse
A standard
Output Pulse
, to move onto the next
Node
along the
Logic Branch
, once this
Node
has finished its execution.
Result
Int
0, if the
Strings
are equal; -1, if they are not.
Equal
Bool
True
, if the
Strings
are equal;
false
, if they are not.
See Also
​
String Value
​
