MoveInFromTop

Overview

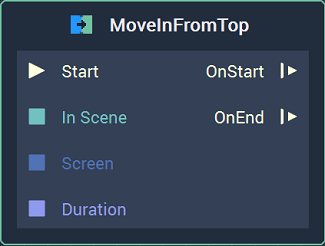

The MoveInFromTop Node.
The MoveInFromTop Node creates a Transition from the current Scene to a chosen Scene. Starting off-screen, the chosen Scene moves in from the top of the Screen. This Transition leads to the chosen Scene covering the previous Scene, which remains static.
​Scope: Project.
Attributes

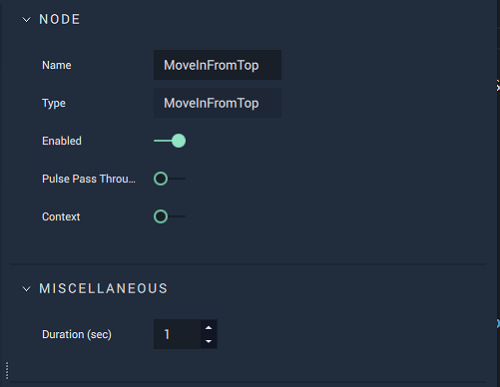

The MoveInFromTop Node Attributes**
Attribute
Type
Description
Duration (sec)
Float
The duration, in seconds, of the Transition, if none is given in the Input Socket.
Inputs
Input
Type
Description
Start (►)
Pulse
A standard Input Pulse, to trigger the execution of the Node.
In Scene
SceneID
The Scene to which the current Scene will Transition to.
Screen
ScreenID
The Screen that contains the initial and final Scenes.
Duration
Float
The duration, in seconds, of the Transition.
Outputs
Output
Type
Description
OnStart (►)
Pulse
Flows to the next Node following MoveInFromTop when the Transition starts.
OnEnd (►)
Pulse
Flows to the next Node following MoveInFromTop when the Transition ends.
See Also
​MoveInFromBottom​
​MoveInFromLeft​
​MoveInFromRight​

Attribute	Type	Description
`Duration (sec)`	Float	The duration, in seconds, of the Transition, if none is given in the Input Socket.

Input	Type	Description
`Start` (►)	Pulse	A standard Input Pulse, to trigger the execution of the Node.
`In Scene`	SceneID	The Scene to which the current Scene will Transition to.
`Screen`	ScreenID	The Screen that contains the initial and final Scenes.
`Duration`	Float	The duration, in seconds, of the Transition.

Output	Type	Description
`OnStart` (►)	Pulse	Flows to the next Node following MoveInFromTop when the Transition starts.
`OnEnd` (►)	Pulse	Flows to the next Node following MoveInFromTop when the Transition ends.
