OR

Overview

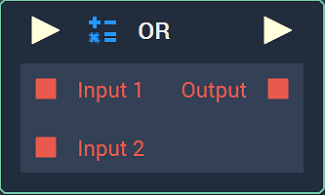

OR is a logical operator Node, which combines two or more Boolean expressions to yield a Boolean value, based on the inputs' logical relationship to one another. The Node outputs a true value if at least one of its inputs is true. Otherwise, it outputs false.

This is the equivalent of the || operator in computer programming.

Input 1	Input 2	Output
True	True	True
True	False	True
False	True	True
False	False	False

Input 1

Input 2

Output

True

False

True

False

True

False

Scope: Project, Scene, Function, Prefab.

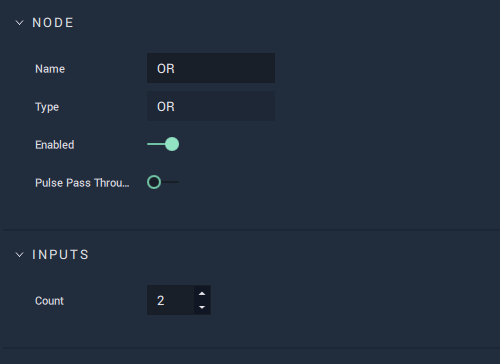

Attributes

Attribute Type Description

Attribute	Type	Description
`Count`	Int	The amount of input Sockets the Node will have (the number of Boolean values that will be checked).

Count

Int

The amount of input Sockets the Node will have (the number of Boolean values that will be checked).

Inputs

Input Type Description

Input	Type	Description
Pulse Input (►)	Pulse	A standard input Pulse, to trigger the execution of the Node.
`Input [n]`	Bool	The Boolean values to be checked.

Pulse Input (►)

Pulse

A standard input Pulse, to trigger the execution of the Node.

Input [n]

Bool

The Boolean values to be checked.

Outputs

Output Type Description

Output	Type	Description
Pulse Output (►)	Pulse	A standard output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
`Output`	Bool	True if one or more of the input Boolean values are also true. Otherwise false.

Pulse Output (►)

Pulse

A standard output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.

Output

Bool

True if one or more of the input Boolean values are also true. Otherwise false.
