On Serial Start

Overview
The On Serial Start Node.
The On Serial Start Node is an Event Listener Node notifying that the Serial connection was successfully established, therefore enabling the user to perform actions on said connection.
Serial Communication in Incari is available as a plugin and is enabled as default. However, in the case that it is disabled in the Plugins Editor, it will not appear in the Project Settings and On Serial Start will not show up in the Toolbox. Please refer to the Plugins Editor to find out more information.
​Scope: Project, Scene.
Attributes

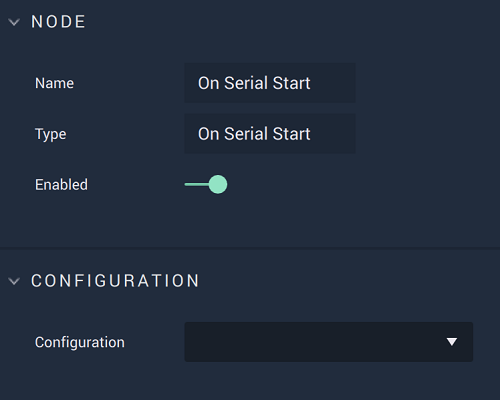

The On Serial Start Node Attributes.
Attribute
Type
Description
Configuration
Drop-down
The desired Serial connection.
Outputs
Output
Type
Description
Pulse Output (►)
Pulse
A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
See Also
​On Serial Error​
​On Serial Packet Receive​
​On Serial Stop​

Attribute	Type	Description
`Configuration`	Drop-down	The desired Serial connection.

Output	Type	Description
Pulse Output (►)	Pulse	A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
