Bool Value

Overview

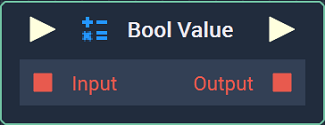

The Bool Value Node.
The Bool Value Node stores a Boolean value in its internal state, which can be defined before the Project's execution and retrieved at runtime.
​Scope: Project, Scene, Function, Prefab.
Attributes

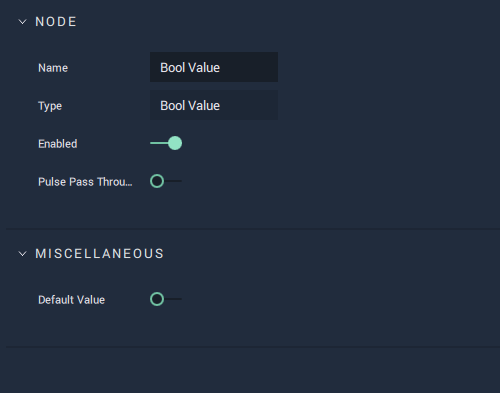

The Bool Value Node Attributes.
Miscellaneous
Attribute
Type
Description
Default Value
Bool
The truth value you wish to output.
Inputs
Input
Type
Description
Pulse Input (►)
Pulse
A standard Input Pulse, to trigger the execution of the Node.
Input
Bool
A Boolean you wish to add to the Bool Value Node.
Outputs
Output
Type
Description
Pulse Output (►)
Pulse
A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
Output
Bool
A Boolean variable that has the truth value defined in Default Value.
See Also
​Boolean​

Attribute	Type	Description
`Default Value`	Bool	The truth value you wish to output.

Input	Type	Description
Pulse Input (►)	Pulse	A standard Input Pulse, to trigger the execution of the Node.
`Input`	Bool	A Boolean you wish to add to the Bool Value Node.

Output	Type	Description
Pulse Output (►)	Pulse	A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
`Output`	Bool	A Boolean variable that has the truth value defined in `Default Value`.
