Range Mapper

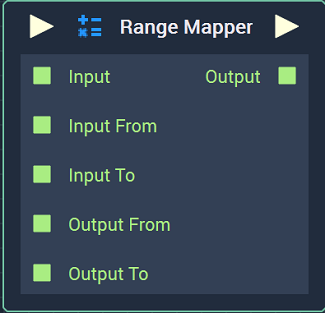

The Range Mapper Node.
Range Mapper transforms a single numerical value, from its relative position in a given reference range, to a new value within a second target range.
In the event that
Input
is outside of the reference (input) range, Clamp
determines whether the Output
should be clamped within the target range or transformed to its relative value outside of the range.Input | Input Range | Output Range | Clamp | Output |
0.5 | 0-1 | 0-100 | ✔ or ✖ | 50 |
20 | 0-100 | 100-0 | ✔ or ✖ | 80 |
1.5 | 0-1 | 0-360 | ✔ | 360 |
1.5 | 0-1 | 0-360 | ✖ | 540 |

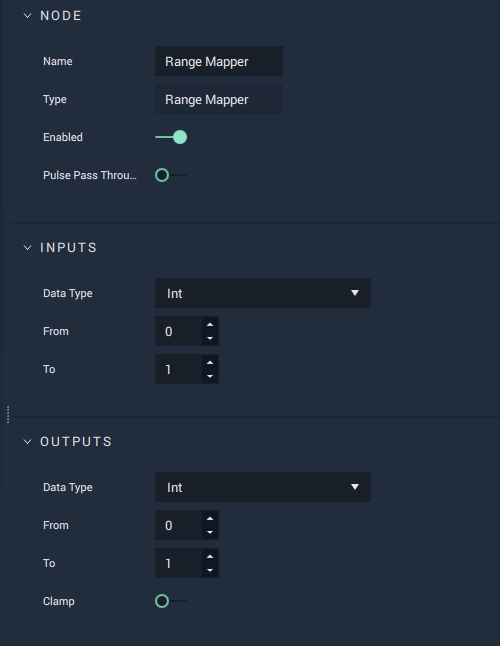

The Range Mapper Node Attributes.
Attribute | Type | Description |
---|---|---|
Data Type | Drop-down | The type of data that will be plugged into the Input , Input From , and Input To Sockets. |
From | Defined in the Data Type Attribute. | The default beginning of the reference range, if there is nothing attached to the Input From Socket. |
To | Defined in the Data Type Attribute. | The default end of the reference range, if there is nothing attached to the Input To Socket. |
Attribute | Type | Description |
---|---|---|
Data Type | Drop-down | The type of data that will be plugged into the Output From and Output To Sockets and returned via the Output Socket. |
From | Defined in the Data Type Attribute. | The default beginning of the target range, if there is nothing attached to the Output From Socket. |
To | Defined in the Data Type Attribute. | The default end of the target range, if there is nothing attached to the Output To Socket. |
Clamp | Bool | Whether the Output should be clamped within the target range or transformed to its relative value outside of the range. |
Input | Type | Description |
---|---|---|
Pulse Input (►) | Pulse | A standard input Pulse, to trigger the execution of the Node. |
Input | Defined in the Data Type Attribute. | The value to be transformed/mapped. |
Input From | Defined in the Data Type Attribute. | The beginning of the reference range. |
Input To | Defined in the Data Type Attribute. | The end of the reference range. |
Output From | Defined in the Data Type Attribute. | The beginning of the target range. |
Output To | Defined in the Data Type Attribute. | The end of the target range. |
Output | Type | Description |
---|---|---|
Pulse Output (►) | Pulse | A standard output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution. |
Output | Defined in the Data Type Attribute. | The transformed value. |
