MatchRegex

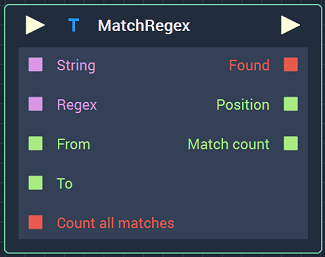

The MatchRegex Node.
The MatchRegex Node allows one to search a String for a certain pattern, which can be given as a regular expression. The part of the String in which the search is performed can be customized with the indices of the beginning and end of the search, which are given to the Node either as Attributes or Inputs. The Node outputs the result as a Boolean, together with the index of the first appearance of the searched pattern and the number of matches.

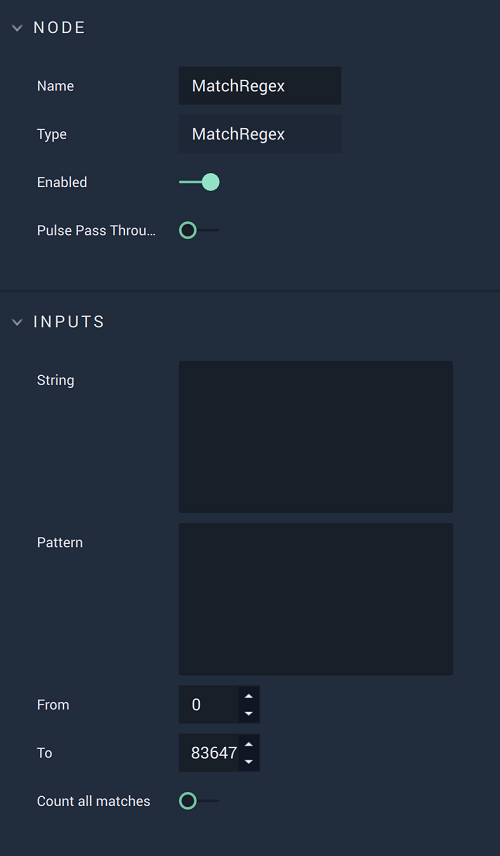

The MatchRegex Node Attributes.
Attribute | Type | Description |
---|---|---|
String | String | The String in which the search will be performed, if none is given in the Input Socket. |
Pattern | String | The pattern that will be searched for using regular expressions, if none is given in the Regex Input Socket. |
From | Int | The index of String from which the search will begin, if none is given in the Input Socket. |
To | Int | The index of String until which the search will be performed, if none is given in the Input Socket. |
Count all matches | Bool | Whether all the matches of Pattern in String will be counted or not, if no Bool value is given in the Input Socket. |
Input | Type | Description |
---|---|---|
Pulse Input (►) | Pulse | A standard Input Pulse, to trigger the execution of the Node. |
String | String | The String in which the search will be performed. |
Regex | String | The pattern that will be searched for using regular expressions. |
From | Int | The index of String from which the search will begin. |
To | Int | The index of String until which the search will be performed. |
Count all matches | Bool | Whether all the matches of Regex in String will be counted or not. |
Output | Type | Description |
---|---|---|
Pulse Output (►) | Pulse | A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution. |
Found | Bool | Whether Regex was found between the given indices of String or not. |
Position | Int | The index of the first apparition of Regex in String . |
Match count | Int | The number of matches of Regex in the searched part of String . If Count all matches is set to false, the output is . |
