Join

Overview

The Join Node.
The Join Node joins several Strings into one. For this, it receives an Array populated with the Strings to be joined and a separator as inputs. The output is a String composed of the Strings in the input Array separated by the given separator.
For instance, having the Array [uno, dos, tres, cuatro, cinco] and a semicolon separator (;) as inputs generates the String uno;dos;tres;cuatro;cinco.
Scope: Project, Scene, Function, Prefab.

Attributes

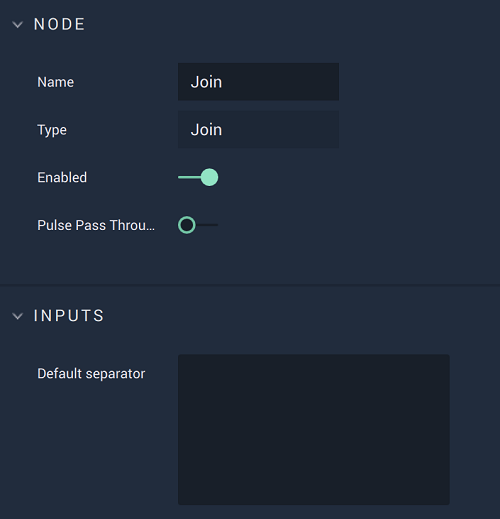

The Join Node Attributes.
Attribute
Type
Description
Default separator
String
The separator that will divide the parts of the joined String, such as a space or comma, if none is given in the Input Socket.

Inputs

Input
Type
Description
Pulse Input (►)
Pulse
A standard Input Pulse, to trigger the execution of the Node.
Array of strings
Array
The Array containing the Strings to be joined.
Separator
String
The separator that will divide the parts of the joined String, such as a space or comma.

Outputs

Output
Type
Description
Pulse Output (►)
Pulse
A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
Joined string
String
The outputted joined String.
