Vector Value

Overview

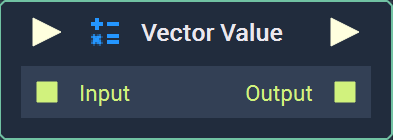

The Vector Value Node.
The Vector Value Node generates a Vector. It can either be a Vector2, Vector3, or Vector4.
​Scope: Project, Scene, Function, Prefab.
Attributes

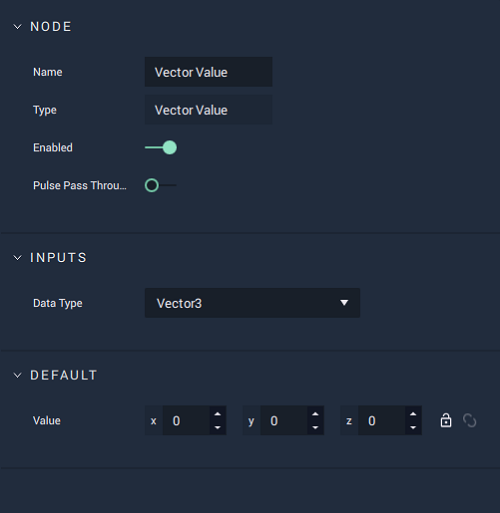

The Vector Value Node Attributes.
Inputs
Attribute
Type
Description
Data Type
Drop-down
Whether a Vector2, Vector3, or Vector4 will be generated.
Default
Attribute
Type
Description
Value
Defined in the Data Type Attribute
The Value that the generated Vector will have.
Inputs
Input
Type
Description
Pulse Input (►)
Pulse
A standard Input Pulse, to trigger the execution of the Node.
Input
Defined in the Data Type Attribute
A Vector you wish to add to the Vector Value Node.
Outputs
Output
Type
Description
Pulse Output (►)
Pulse
A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
Output
Defined in the Data Type Attribute
The generated Vector.
External Links
​Euclidean vector on Wikipedia.

Attribute	Type	Description
`Data Type`	Drop-down	Whether a Vector2, Vector3, or Vector4 will be generated.

Attribute	Type	Description
`Value`	Defined in the `Data Type` *Attribute*	The `Value` that the generated Vector will have.

Input	Type	Description
Pulse Input (►)	Pulse	A standard Input Pulse, to trigger the execution of the Node.
`Input`	Defined in the `Data Type` *Attribute*	A Vector you wish to add to the Vector Value Node.

Output	Type	Description
Pulse Output (►)	Pulse	A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
`Output`	Defined in the `Data Type` *Attribute*	The generated Vector.
