Rotation Matrix

Overview

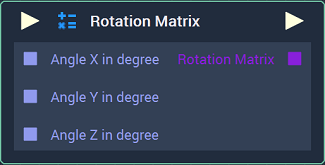

The Rotation Matrix Node.

The Rotation Matrix Node receives three angles as inputs and generates a Matrix4x4 that represents a rotation along the X, Y, and Z axes in the received angles.

Scope: Project, Scene, Function, Prefab.

Attributes

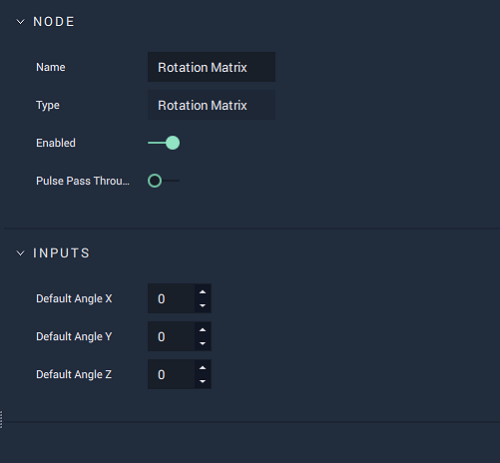

The Rotation Matrix Node Attributes.

Attribute	Type	Description
Default Angle X	Float	The angle, in degrees, along the X axis in which the rotation will be performed, if no value is provided in the Angle X in degree Socket.
Default Angle Y	Float	The angle, in degrees, along the Y axis in which the rotation will be performed, if no value is provided in the Angle Y in degree Socket.
Default Angle Z	Float	The angle, in degrees, along the Z axis in which the rotation will be performed, if no value is provided in the Angle Z in degree Socket.

Inputs

Input	Type	Description
Pulse Input (►)	Pulse	A standard Input Pulse, to trigger the execution of the Node.
Angle X in degree	Float	The angle, in degrees, along the X axis in which the rotation will be performed.
Angle Y in degree	Float	The angle, in degrees, along the Y axis in which the rotation will be performed.
Angle Z in degree	Float	The angle, in degrees, along the Z axis in which the rotation will be performed.

Outputs

Output	Type	Description
Pulse Output (►)	Pulse	A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
Rotation Matrix	Matrix4x4	A Matrix4x4 representing rotations along the X, Y, and Z axes in the given angles.

External Links

• Rotation matrix on Wikipedia.
