Serial Send Packet

Overview

The Serial Send Packet Node.
The Serial Send Packet Node is used to send a data Packet after selecting a Serial Communication connection from the Drop-down Menu.

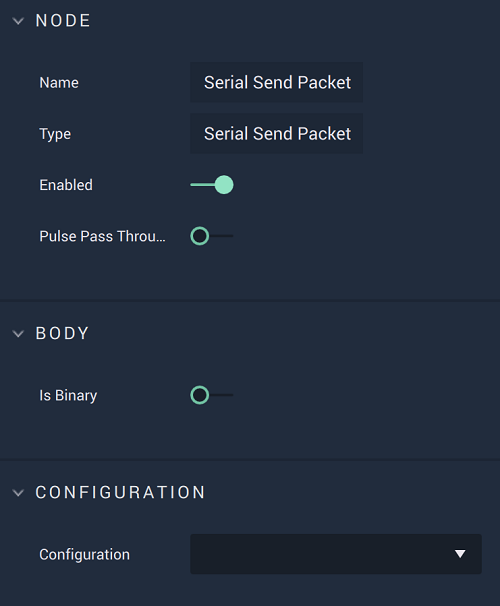

Attributes

Attribute
Type
Description
Is Binary
Bool
Can be toggled on or off depending on if the Message body is binary or not.
Configuration
Drop-down
The desired Serial connection.

Inputs

Input
Type
Description
Pulse Input (â–º)
Pulse
A standard Input Pulse, to trigger the execution of the Node.
Message
String
The Packet's Message.

Outputs

Output
Type
Description
Pulse Output (â–º)
Pulse
A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.

See Also
