Trim

Overview

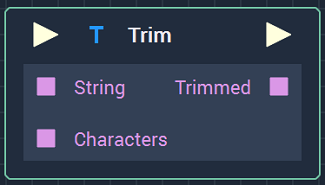

The Trim Node.
The Trim Node trims certain chosen characters from a String. It receives as Input a String to be trimmed and the characters to trim, and it outputs the trimmed String.
For example, trimming the characters "ab" from the String "babbaacababa" results in the trimmed String "c".
Scope: Project, Scene, Function, Prefab.

Attributes

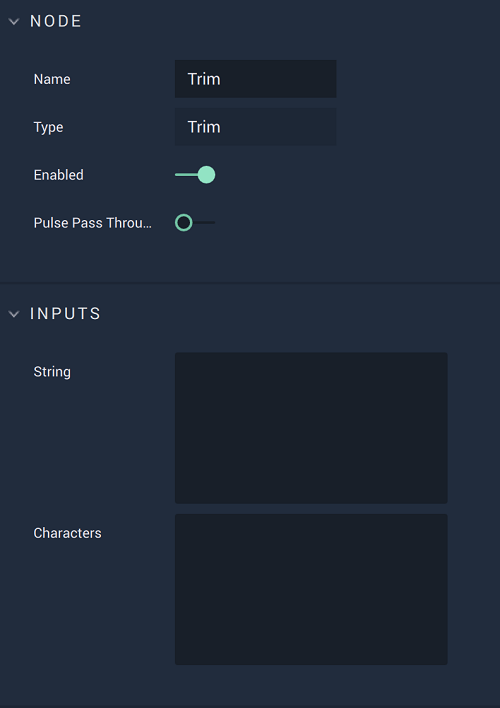

The Trim Node Attributes.
Attribute
Type
Description
String
String
The String to be trimmed, if none is given in the Input Socket.
Characters
String
The characters to be trimmed from String, if none is given in the Input Socket.

Inputs

Input
Type
Description
Pulse Input (►)
Pulse
A standard Input Pulse, to trigger the execution of the Node.
String
String
The String to be trimmed.
Characters
String
The characters to be trimmed from String.

Outputs

Output
Type
Description
Pulse Output (►)
Pulse
A standard Output Pulse, to move onto the next Node along the Logic Branch, once this Node has finished its execution.
Trimmed
String
The trimmed String.

See Also
